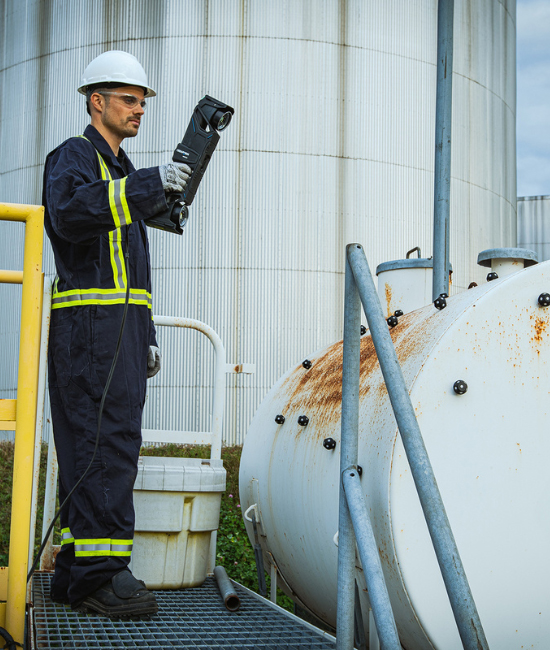

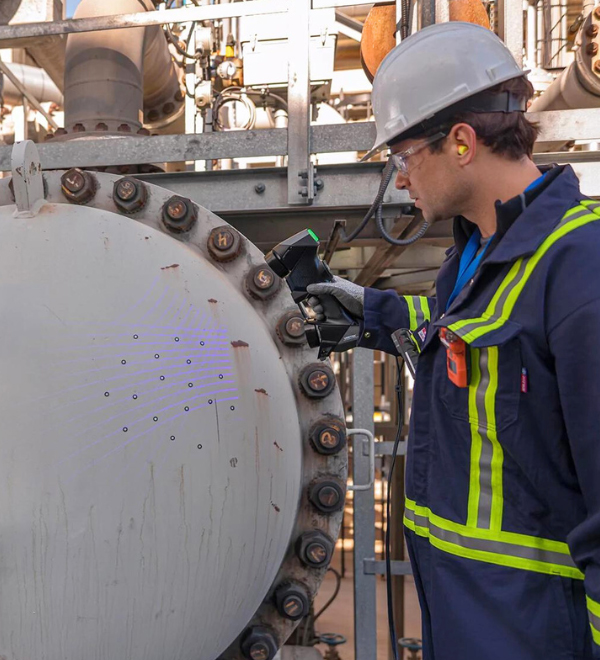

Pressure Equipment (propane sphere and pressure vessel)
Most severe accidents in refineries usually involve propane spheres, which are components at risk of exploding due to the high pressure they must sustain to maintain propane in its liquid state.
The Surface Damage module proposes technician-independent measuring tools to assess corrosion on spherical designs, offering powerful residual thickness export capabilities.
The Surface Damage module proposes technician-independent measuring tools to assess corrosion on spherical designs, offering powerful residual thickness export capabilities.
High-resolution thickness-loss measurement using a new virtual pit gauge
Accurate damage localization using the reference arrow
Rejection criteria based on interaction parameters
Excel cells format thickness export
Calibration MFL Instruments (tank floor and roof)
As a result of their superficies, tank floors, roofs, and shells are mostly assessed with MFL equipment—in a similar way that the Pipeline module uses MFL Pigs in the pipeline industry.

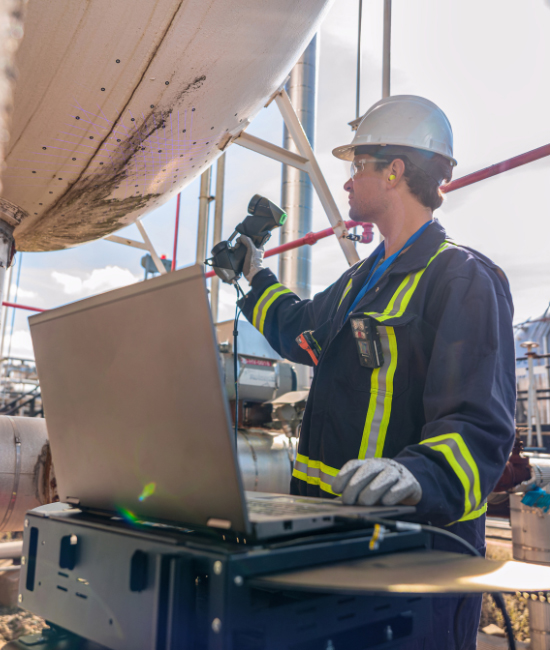

The Surface Damage module presents accurate tools to assess external damages, such as bulge damage on cylindrical tanks. It also stands out as the in-field reference to calibrate MFL instruments.
The Surface Damage module presents accurate tools to assess external damages, such as bulge damage on cylindrical tanks. It also stands out as the in-field reference to calibrate MFL instruments.
Automatic maximum loss detection and defect dimensions
Accuracy up to 0.02 mm
Automatic damage distance evaluation to virtual reference
Automatic report generation
Which 3D scanner is right for you?
Accessories

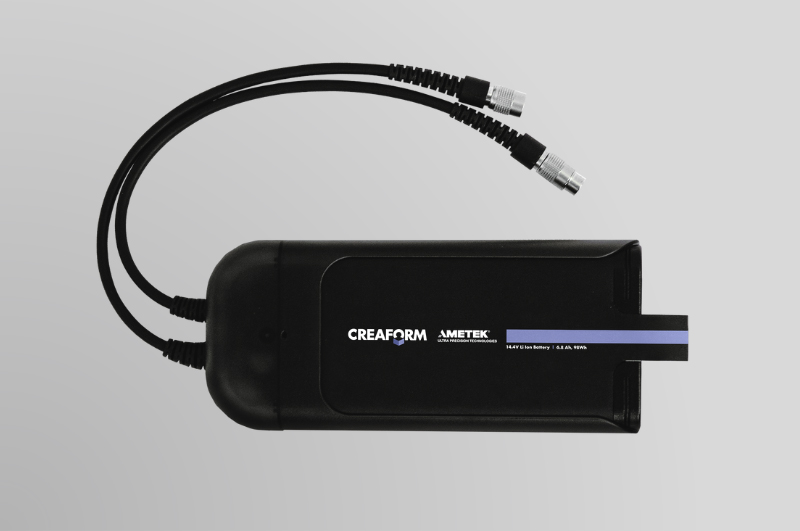

3D scanner external battery
Extra 8-hour autonomy to facilitate data acquisition when there is no power source

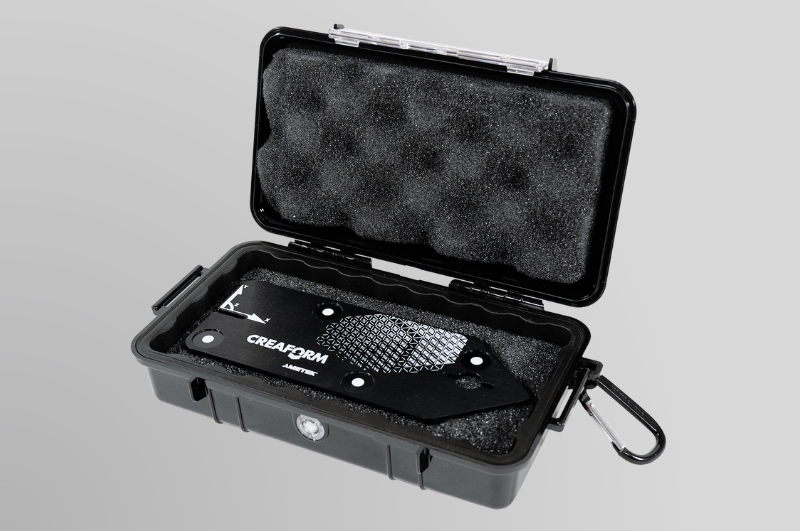

Referencing arrows
No need for alignment, ready for reporting
